DOS750

Pneumatic dosing machine

DOS750 is a pneumatic volumetric dosing machine for spreadable creams, chocolate and pure dried fruit pastes dosing. Dosing capacity from 20 gr to 750 gr.

Equipped with a cylinder complete with a micrometric scale for the desired weight adjustment. Adjustable pneumatic limit switch (second jar size) for dosing start and complete with a 24-liter wall loading hopper.

A pedal activates the START/STOP of the pneumatic valve, for the product dosage in the container.

Machine completely removable for cleaning and sanitization.


Share:


CAPACITY

dosing: 20 – 750 gr

POWER SUPPLY

400 V. three-phase + neutral + ground –  50 hZ

Compressed air: 5/6 bar

Photogallery

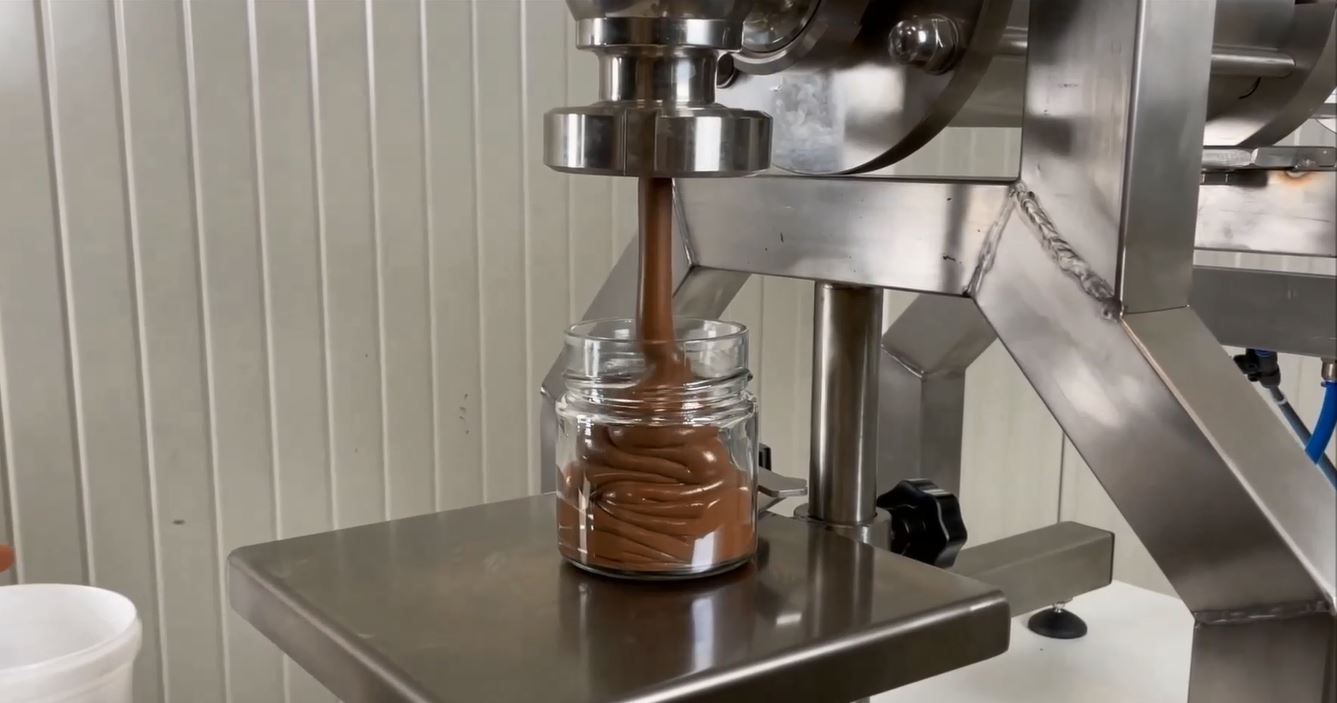

  • Catturaa

Video

Contact us for more information on: DOS750
